AM2 Adjustable MCCB

Description

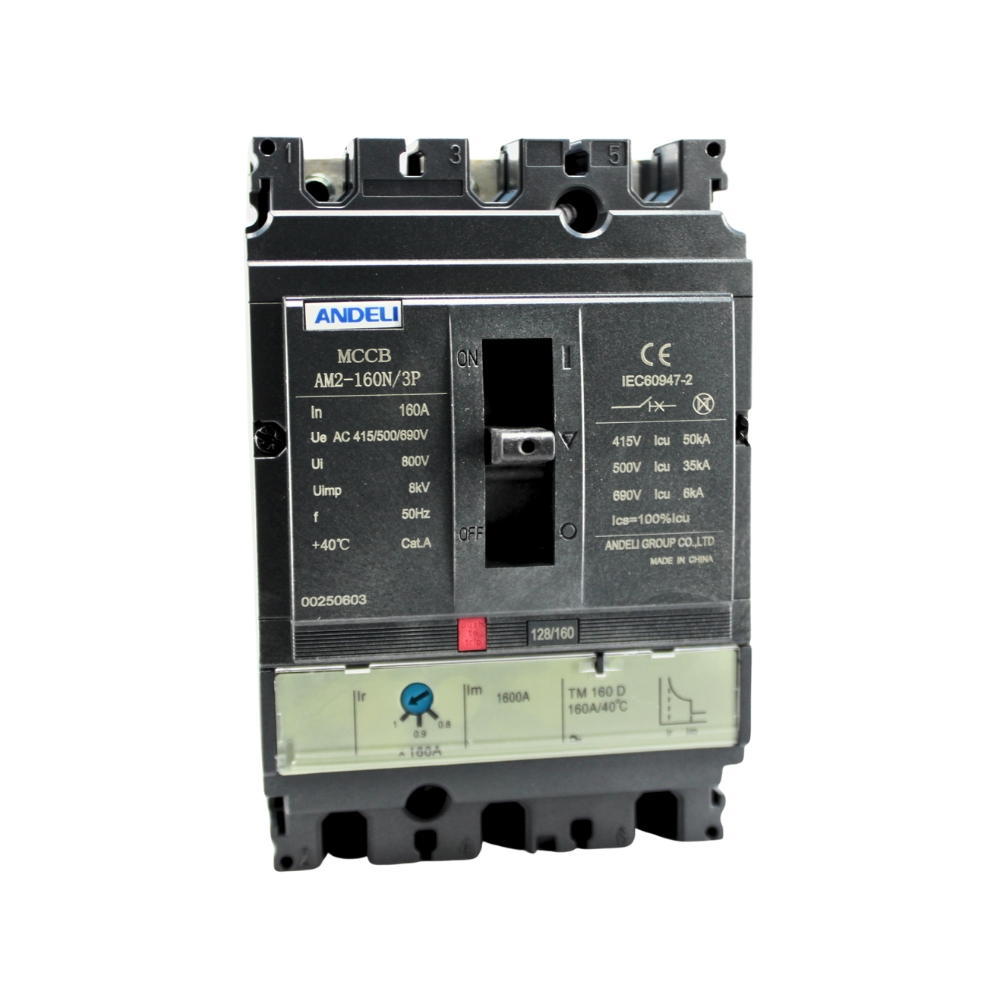

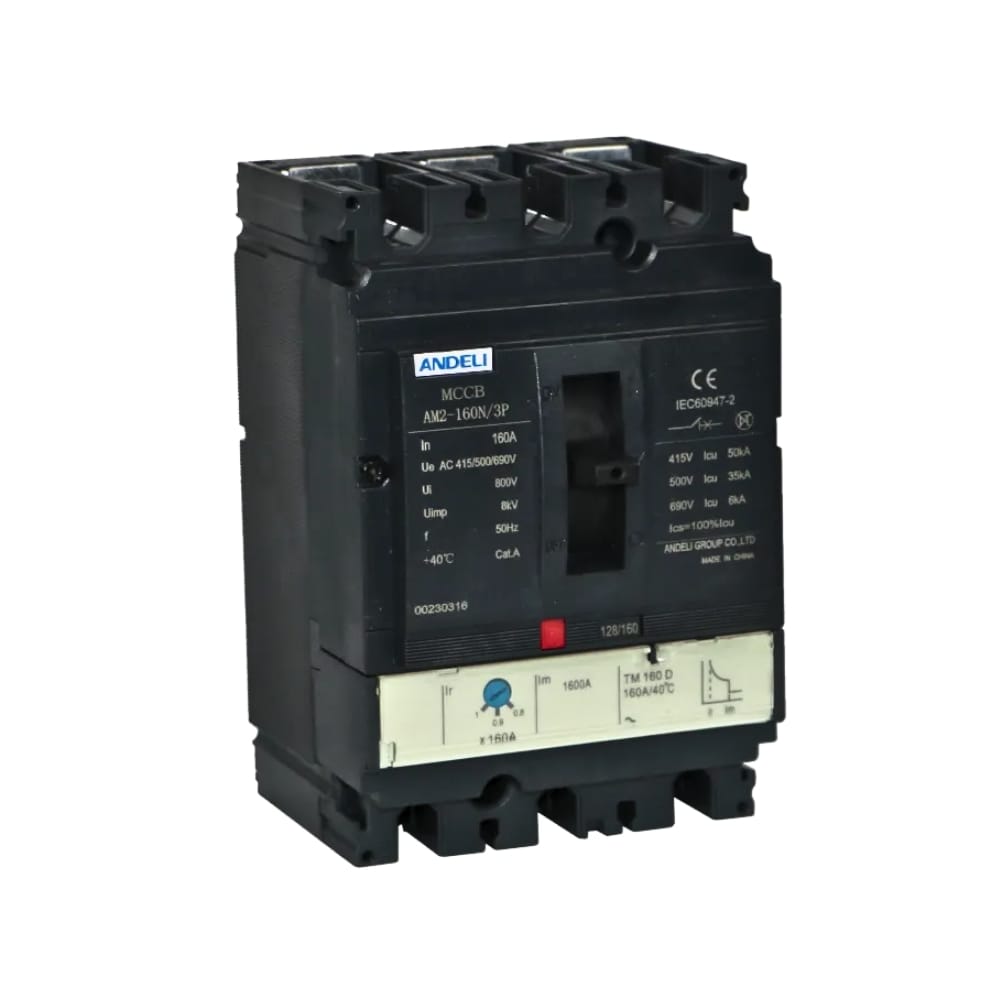

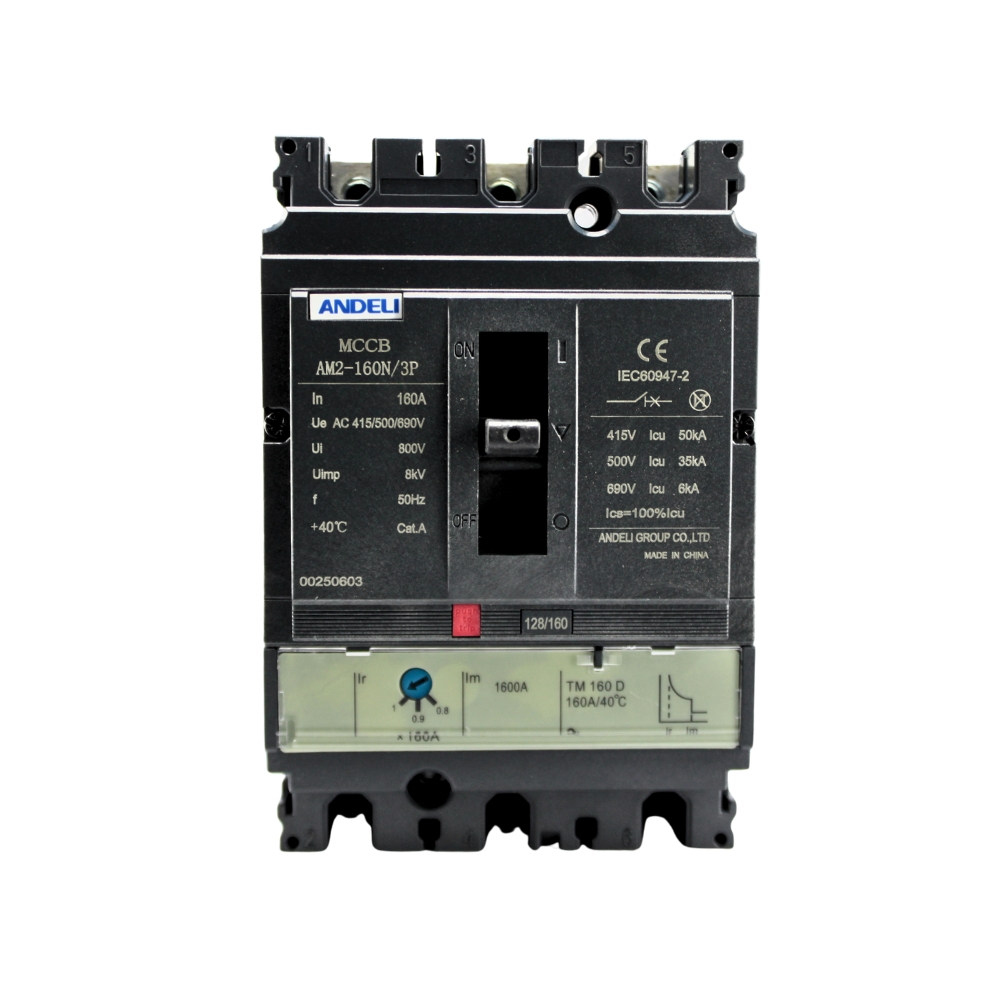

AM2 Adjustable MCCB

The ANDELI AM2 Adjustable MCCB (Moulded Case Circuit Breaker) is a high-performance electrical protection device designed for industrial, commercial, and power distribution systems. Built using advanced manufacturing technology and international design standards, the AM2 series ensures reliable protection against overload, short circuit, and undervoltage conditions.

With a rated insulation voltage of 750V and operating voltage up to 690V, this MCCB is suitable for AC 50/60Hz electrical distribution networks. It supports a wide current range from 12.5A to 1600A, making it ideal for various low-voltage power distribution applications.

The thermal-magnetic trip unit provides precise protection, while adjustable trip settings allow flexible operation for different electrical systems. The breaker is widely used in power distribution panels, motor protection circuits, and industrial electrical installations.

Manufactured according to IEC 60947-2 standards, the ANDELI AM2 series ensures durability, safety, and long-term performance.

⭐ Key Features

✔ Brand: ANDELI
✔ Series: AM2
✔ Product Type: Adjustable Moulded Case Circuit Breaker (MCCB)
✔ Pole Options: 3 Pole

✔ Breaking Capacity: 35 kA
✔ Rated Current Range: 63A – 250A
✔ Rated Insulation Voltage: 750V
✔ Rated Operating Voltage: Up to 690V
✔ Frequency: 50/60Hz
✔ Trip Unit: Thermal Magnetic Release
✔ Standard: IEC 60947-2
✔ Application: Power distribution & motor protection

⚡ Applications

• Industrial Power Distribution

• Commercial Electrical Panels

• Motor Protection Systems

• Factory Electrical Systems

• Low Voltage Switchgear Panels

• Electrical Distribution Boards
